Most school buildings across Texas, Kansas, and Oklahoma are concrete block, and in the older ones the cores are empty. School masonry insulation is the one envelope upgrade that goes into a standing CMU wall without opening it. This article covers what the foam does thermally, what its acoustic rating actually measures, and how the work fits a district calendar.
TLDR: School masonry insulation changes two things about a block wall, and districts routinely expect the wrong one. The published acoustic figure for this foam is a transmission rating, so it helps keep the band room out of the classroom next door and does nothing about the noise bouncing around inside either room. That distinction decides whether Core Foam solves the complaint you have.
The Comfort Complaint a District Pays to Fix Twice
The same three rooms land on the complaint list every spring: the west end of a 1970s classroom wing, block exterior walls, hot from lunch until dismissal. A consultant reports the units are undersized. The district buys tonnage over the summer, and the following April those rooms are back on the list. The load was never the equipment’s fault. The wall is 8-inch hollow block with empty cores, and the last renovation’s energy model took its R-value off a table that ignores the block webs.
The district has paid for capacity it did not need, and the wall cannot be touched until June, because the only window to drill and inject a classroom wing falls between the last student day and the first teacher day. That is what getting school masonry insulation wrong costs: a mechanical project that solved nothing, and a twelve-month wait for the wall.
Why Schools Keep Getting Built in Block
Concrete masonry keeps winning school projects for reasons that have little to do with energy. It takes abuse from students and carts, it does not burn, it leaves no cavity for pests, and it can be repainted for thirty years. Districts also like mass walls for impact resistance, though any forced-entry claim belongs to a tested assembly, not to what is in the cores.
What block does not have is thermal resistance. A hollow unit is dense, conductive material around an air cavity, and air cavities convect. That gap is what school masonry insulation fills, and in a 1960s building it runs to tens of thousands of square feet of wall with empty cores.
The Pattern I See in CMU Classrooms
More than twenty years of applying sprayed and injected insulation across Texas, Kansas, and Oklahoma has taught me that districts almost never call about insulation. They call about comfort, usually after spending money on the mechanical side.
The pattern is consistent. Teachers on an exterior wall report the room runs hot in the afternoon or cold in January. The paperwork says the envelope is fine, so the investigation goes to the air: undersized units, poor balance, a failed damper. What actually happened, on the jobs we walk, is one of two things. Either the wall R-value in the model came off a table that ignores the block webs, or the block package got substituted between design and construction and nobody re-ran the wall. Neither gets caught by a mechanical assessment, which measures the equipment rather than what the wall was assumed to be.
What Occupancy Group Is a School Under the IBC?
A K-12 school is Group E under Section 305.1 of the 2021 IBC, which covers educational use through the 12th grade by six or more persons at a time. Post-secondary buildings are classified differently. College and university classroom buildings sit in Group B, and treating anything with classrooms as an educational occupancy is a common specification error.
Occupancy drives interior finish. Table 803.13 assigns a required class by occupancy group and by location, with separate columns for interior exit stairways and exit passageways, for corridors, and for rooms, and different values for sprinklered and nonsprinklered buildings. That table also moved: it was Table 803.11 in the 2015 edition and became Table 803.13 in the 2018, 2021, and 2024 editions of the IBC. A school specification still citing 803.11 was copied forward from an older job.
Here is the distinction that matters for Core Foam. Chapter 8 governs interior finish, meaning exposed surfaces, and foam sealed inside a block core is never an exposed surface. Concealed insulation routes through Section 807, which sends insulating materials to Section 720, and Section 720.2 limits them to a flame spread index of not more than 25 and a smoke developed index of not more than 450. Core Foam’s listed result on ASTM E84 surface burning characteristics of building materials and UL 723, per ICC-ES listing ESL-1648, is a flame spread index of 25 or less and a smoke developed index of 450 or less. Class A under Section 803.1.2 runs 0 to 25 flame spread and 0 to 450 smoke developed, so the listed result sits inside both provisions.
The fill does not change what a wall is rated for. cfiFOAM states that its masonry foam neither adds to nor detracts from the fire-resistance rating of a CMU wall. Whether a rated corridor’s listing describes its cores as empty, grouted, or filled is a call for the licensed architect or engineer and the authority having jurisdiction.
School Masonry Insulation and Classroom Acoustics: Transmission Is Not Absorption
cfiFOAM’s product sheet lists STC 54 to 60 in 8-inch block walls and STC 58 to 61 in 12-inch block walls. Both are transmission ratings. Sound transmission class describes how much sound an assembly stops on its way from one space into another. Noise reduction coefficient, the number schools see quoted for acoustic ceilings, describes how much sound a surface absorbs inside one room. They answer different questions, and neither converts into the other.
In a school that distinction is the whole conversation. If the band room, the gym, or the cafeteria bleeds into the classroom next door, that is transmission, and a masonry demising wall is the right place to work. If a gym is a wash of echo and a teacher cannot be understood from the far end, that is absorption, it happens inside one room, and nothing sealed in the cores will touch it. That is a sprayed fiber job on the deck.
Two cautions belong with the published figures. The product sheet names neither the test standard nor the block, so ask for the test report before either range goes into a submittal, because sound transmission class is a property of an assembly, never of a material. And the sheet pairs those ranges with no unfilled control of the same wall, so we publish no point gain for filling cores. For a campus on an arterial road or under an approach path, ask for outdoor-indoor transmission class as well. cfiFOAM does not publish an OITC figure, and that rating weights the low-frequency exterior noise a standard rating underrepresents.
Districts usually raise classroom acoustics through ANSI/ASA S12.60, the acoustical performance criteria standard for schools. Read it for what it is. It sets criteria for background noise and reverberation in a learning space, and meeting either is a whole-room design problem: equipment placement, room volume, ceiling and wall absorption, door seals, and glazing. No insulation product satisfies it alone.
Core Foam, Interior Furring, or Exterior Continuous Insulation
Three strategies compete for the same school CMU wall, and they do not sit in the same place in it. That geometry settles most of the comparison before performance enters.
| Factor | Injected Core Foam | Interior furring with batts | Exterior continuous insulation |
|---|---|---|---|
| Calculated wall R-value | R-8.21 to R-4.02, 8 inch unit with three 1 inch webs, by block density, per cfiFOAM | Cavity value plus bare block, interrupted at every stud | Its rated value, uninterrupted |
| Continuous insulation credit | No, interrupted by every web | No, interrupted by framing | Yes |
| Interior dimension lost | None | Roughly 2 to 4 inches per wall | None |
| Disruption when occupied | Drilled holes from one face; wall stays finished | Casework, outlets, boards, trim come off | Interior stays in service; the perimeter does not |
| Sound transmission | STC 54 to 60 in 8 inch block per the cfiFOAM product sheet; test standard not stated | Depends on the tested furred assembly | Depends on the tested assembly |
| Sound absorption in the room | None; it is inside the wall | Little; the face is gypsum | None; it is outside the wall |
| Moisture behavior | Vapor permeable, about 10.6 perms; never injected into a wet wall | Adds a cavity and a vapor profile to detail | Warms the masonry, lowering room-side condensation risk |
| Fit with a district calendar | Wing by wing in a summer shutdown | Room by room, each out of service | Season dependent; perimeter is a work zone |
Core Foam is the only one of the three that costs a district neither floor area nor a gutted room, and the only one that cannot claim continuous insulation credit. Where compliance already runs through a U-factor calculation, that trade favors the fill. Where a retrofit chases a prescriptive continuous insulation row, it does not.
Retrofitting School Masonry Insulation Around a District Calendar

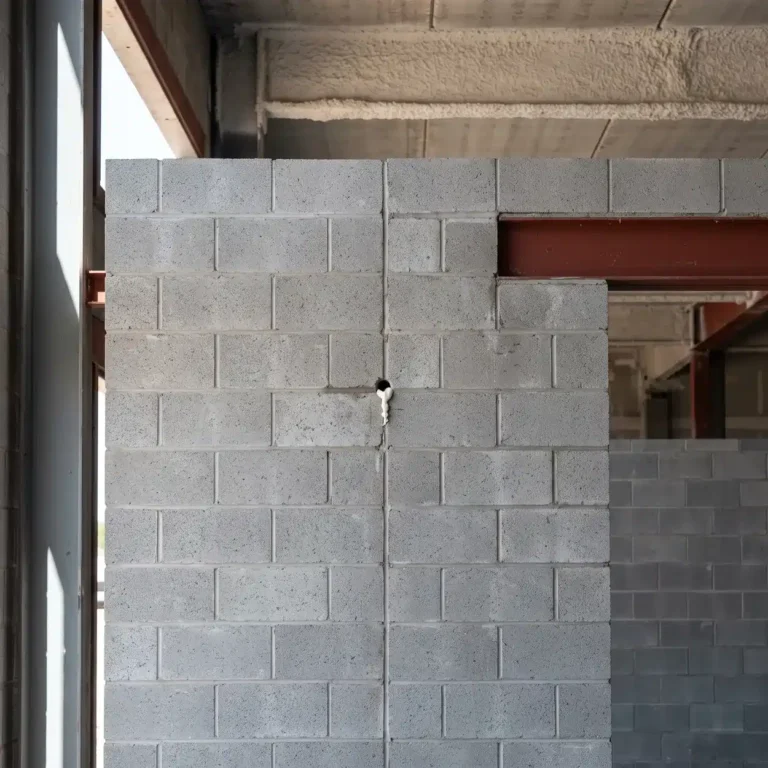

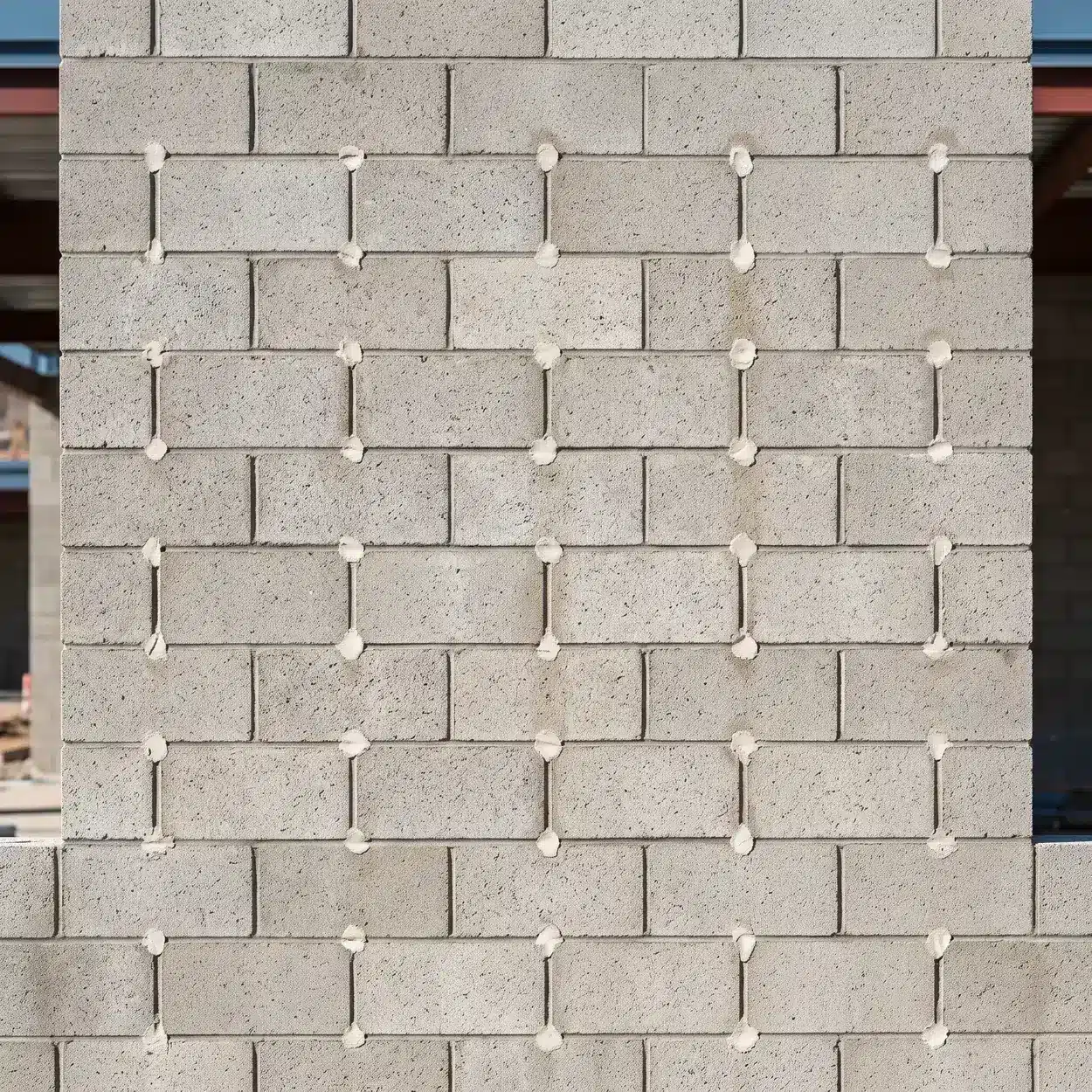

Side fill and pressure fill work on a finished, standing wall. That is why this scope exists on occupied campuses: the foam is injected through small holes drilled in mortar joints from one face, and the wall stays intact on both sides. Very few strategies go into an existing CMU wall without opening it.
The constraints in a school are scheduling and dust, not chemistry. The window is whatever the calendar leaves between the last student day and the first teacher day, and a wing has to be released as a unit. The drilling face gets chosen early: corridor walls are usually unavailable inside because of lockers, tile wainscot, and casework, which pushes the work outdoors and onto the weather. Drilling masonry also generates respirable silica dust, so the controls in the OSHA construction standard at 29 CFR 1926.1153 belong in the plan alongside daily cleanup and a handover condition custodial staff will accept.
Two obstructions decide how much wall is fillable. The first is structure: bond beams, grouted cells carrying reinforcement, and fully grouted corridor or shear walls have nothing to fill. The second is what schools run inside their walls. Chases for clocks, intercom, fire alarm, and data were routinely cored into block, and each one splits a cell. Injected foam takes the path of least resistance, so an obstruction that stops the run leaves a void nobody can see.
One detail people miss. cfiFOAM normally suggests a 72-hour cure before a filled wall is painted, and says to ventilate well until the foam has fully cured. Build that into the summer schedule so finishes do not go back too soon.
What a Late Block Substitution Does to a School Energy Model
Block gets value-engineered late on school work, usually to a heavier and cheaper unit from a closer plant, and the substitution reads like a masonry decision rather than a thermal one. It is not. Take one 8-inch unit with three 1-inch webs and Core Foam in the cores: cfiFOAM’s series-parallel value is R-8.21 in 85 pound per cubic foot lightweight block and R-4.02 in 135 pound per cubic foot normal weight block. Same fill, same unit, and the wall loses more than half its calculated resistance to the concrete alone. Density is graded under ASTM C90, the standard specification for dry-cast loadbearing concrete masonry units, where a submittal review starts.
So the rule is short. Any time the block package changes, the wall gets re-run against the approved submittal rather than the specification’s generic call for concrete masonry units.
School Masonry Insulation Across Texas, Kansas, and Oklahoma
Districts reuse prototype designs, and that is where this gets regional. The same elementary prototype built across our three states is judged against four different envelope requirements from one set of drawings, and two of those four sit twenty miles apart in the same metro.
Texas enforces the 2015 IECC statewide, effective November 1, 2016, under 34 Texas Administrative Code 19.53(a). The State Energy Conservation Office’s stated position is that continued use of the 2015 edition best serves statewide energy conservation while local jurisdictions build compliance training. Home-rule cities may amend upward. Dallas has, to the 2021 IECC; Fort Worth has not. One prototype priced for both cities can be measured against two editions. Oklahoma’s adopted commercial standard is the 2006 IECC with ASHRAE 90.1-2003, effective September 14, 2022, a 2022 effective date on a 2006 edition. Kansas names the 2006 IECC as its state standard under K.S.A. 66-1227 but is a home-rule state, so it stays a conversation with the local building official.
For above-grade mass walls, Table C402.1.3 of the 2021 IECC, the insulation component R-value method, sets R-5.7ci in Climate Zone 2, R-7.6ci in Zone 3, and R-9.5ci in Zone 4 for occupancies other than Group R. Schools take those rows, not the higher residential ones, which matters before a dormitory number gets copied onto an elementary school. Those are 2021 values, and in Texas they reach a campus only where the city amended up to that edition. Read the ci row from the edition your building official enforces, and take the zone from Table C301.1 in that same edition rather than a map graphic: Dallas-Fort Worth, Oklahoma City, and Tulsa are Zone 3A, Wichita 4A, Houston 2A. The International Code Council publishes every edition of the IECC; the authority having jurisdiction decides which one applies.
The climate beat that matters in a classroom is the afternoon. Central and West Texas run a large diurnal swing, and a west-facing mass wall with empty cores absorbs heat all day and releases it during the last two periods, exactly when instruction is happening. Teachers feel that as an HVAC failure. It is a wall.
How to Scope School Masonry Insulation on a District Project
- Decide which problem you are solving. Thermal comfort, transmission between spaces, and reverberation inside a room are three scopes, and only the first two live in a wall.
- Confirm the walls are hollow, wing by wing, from record drawings and a probe. Fully grouted walls have nothing to fill.
- Get block density off the approved submittal, calculate the wall by the series-parallel method, and put the source and density in the energy model notes.
- Map obstructions cell by cell: bond beams, reinforced cells, lintels, and the clock, alarm, intercom, and data chases older schools cored into block.
- Pick the drilling face early, then write dust control, cleanup, and the handover condition into the contract. In a school the housekeeping standard is part of the scope.
- Get a project bid. There is no citable published installed price for masonry cavity fill in this market, and any per-square-foot figure circulating as an industry number came from a lead-generation site.
Our Core Foam R-value and fire safety article carries the full calculated table behind step 3.
Related Reading
- School acoustic insulation and K-13 performance covers the absorption half of school acoustics, in gyms and cafeterias.
- K-13 acoustic performance and NRC ratings by thickness shows how absorption behaves by thickness and substrate.

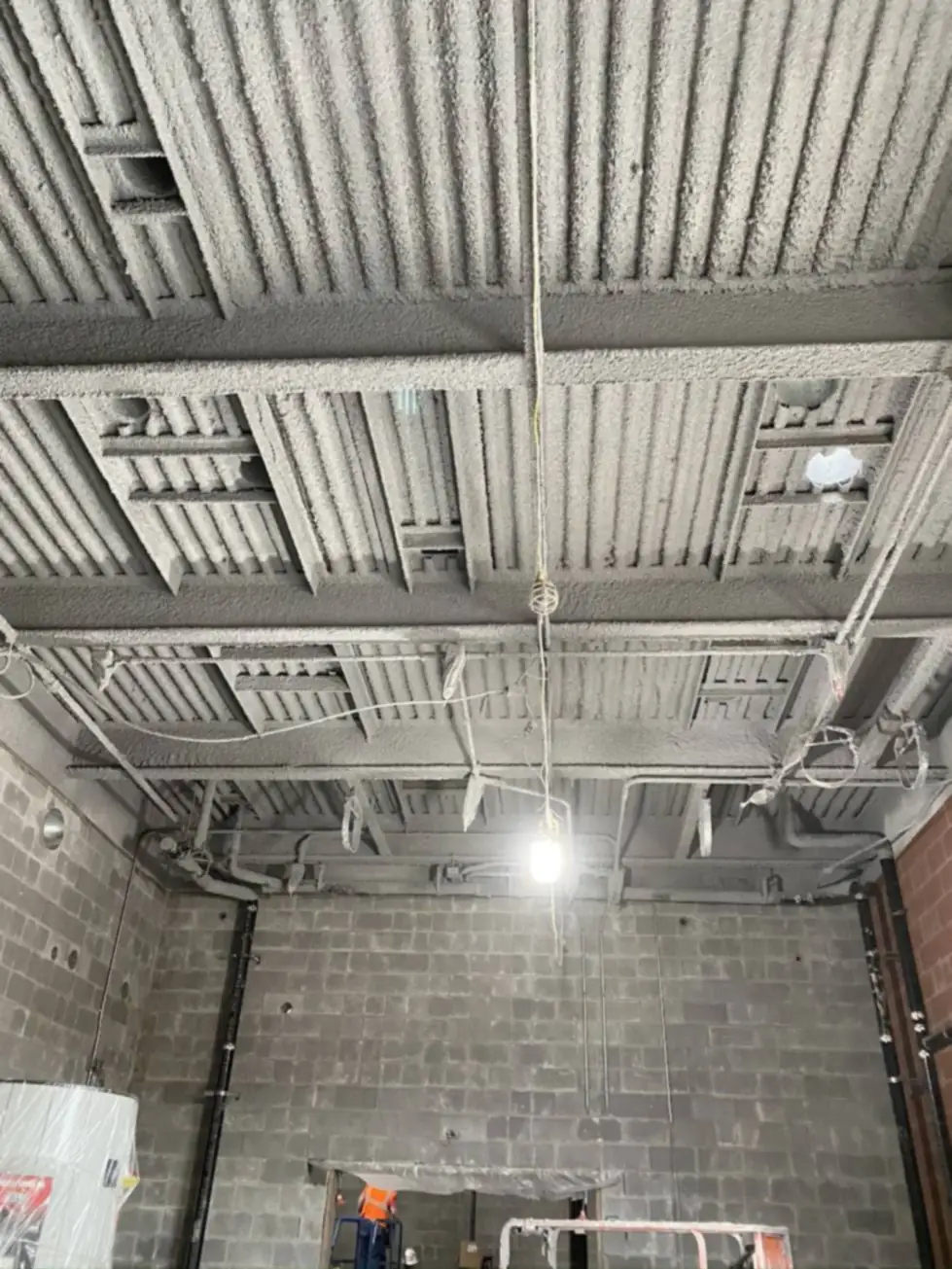

- School fireproofing and structural steel protection covers the steel side of an educational building.
Frequently Asked Questions
What occupancy group is a K-12 school under the building code? Group E, under Section 305.1 of the 2021 IBC, which covers educational use through the 12th grade by six or more persons at a time. Higher education is classified separately, and college and university classroom buildings are Group B. Interior finish by occupancy is Table 803.13 in the 2018, 2021, and 2024 editions.
Does filling block cores make a classroom quieter? It depends which kind of quiet. cfiFOAM’s product sheet lists STC 54 to 60 in 8-inch block walls, without naming the test standard, and that is a transmission rating, so it speaks to sound arriving from an adjacent space or outdoors. Reverberation inside the room is absorption, and filling the wall does not address it.
Can Core Foam be installed while a school is occupied? The injection works on a finished standing wall, which is why it is scheduled on live campuses at all. In practice districts run it during the summer shutdown and release a wing at a time, because drilling masonry produces silica dust controlled under 29 CFR 1926.1153.
Does filling the cores raise the fire rating of a school corridor wall? No. cfiFOAM states that its masonry foam neither adds to nor detracts from the fire-resistance rating of a CMU wall. A rated wall gets its hours from a listed or code-recognized assembly, and whether that listing allows filled cores is confirmed by the licensed architect or engineer and the authority having jurisdiction.
Does ANSI/ASA S12.60 require insulated masonry walls? It does not specify products. It sets acoustical performance criteria for learning spaces, including background noise and reverberation, and those are met through whole-room design: equipment placement, room volume, absorptive finishes, and glazing detail.
What does school masonry insulation cost per square foot? There is no credible published installed price for this work in Texas, Kansas, or Oklahoma, and we will not invent one. Cost turns on unit size, how many cells are open, which face can be drilled, and campus access. Get a project-specific bid.
Key Takeaways
Transmission and absorption are different problems.
- STC 54 to 60 in 8-inch block walls, per cfiFOAM’s product sheet, measures sound stopped between spaces.
- Reverberation inside a gym or cafeteria is absorption, and filling cores does not touch it.
- The published data carries no unfilled control, so claim no point gain.
Get the occupancy right before quoting the finish table.
- K-12 is Group E under Section 305.1 of the 2021 IBC; college buildings are Group B.
- Interior finish by occupancy is Table 803.13 in 2018, 2021, and 2024, and was 803.11 in 2015.
- Foam in block cores is concealed insulation under Sections 807 and 720.2, not interior finish.
The block decides the wall.
- Same 8-inch unit and same fill: R-8.21 in 85 pcf block, R-4.02 in 135 pcf block, per cfiFOAM.
- Re-run the wall any time the block package is value-engineered.
- Take density off the approved submittal, not the specification.
The calendar is the constraint on a campus.
- Side and pressure fill work on a standing, finished wall, which is why this fits schools.
- Grouted cells and clock, alarm, intercom, and data chases decide what is fillable.
- cfiFOAM normally suggests a 72-hour cure before a filled wall is painted.
Three states, four different answers.
- Texas enforces the 2015 IECC statewide, and Dallas has amended up to the 2021 while Fort Worth has not.
- Oklahoma is on the 2006 IECC with ASHRAE 90.1-2003, effective September 2022.
- Kansas names the 2006 IECC under home rule; settle it with the building official.
If you run facilities for a district and you want a crew that separates a transmission complaint from a reverberation complaint before quoting, reads block density off the approved submittal, calculates the wall by the series-parallel method rather than R per inch times core depth, and builds the drilling and dust plan around your calendar, that is the work we do throughout Texas, Kansas, and Oklahoma. Call me at 512-387-2111 or email ross@bahlfireproofing.com, or Contact Bahl Fireproofing to get a masonry scope priced for a summer window. Our K-13 sprayed fiber insulation page covers the exposed-deck acoustic work gyms and cafeterias need instead, and our service areas across Texas, Kansas, and Oklahoma page shows where we work.
This article provides general educational information about masonry insulation, classroom acoustics, and passive fire protection. It is not engineering, legal, or code-compliance advice and does not replace project-specific direction from a licensed architect or engineer. Manufacturers revise their data sheets, so confirm current R-value, density, and acoustic values against the latest published sheet; suitability depends on project conditions, and transmission and absorption ratings belong to specific tested assemblies rather than predicting performance in a room. Fire-resistance ratings depend on the tested or calculated assembly and correct installation and must be confirmed against the applicable listing, and code citations reference an edition that varies by the authority having jurisdiction. Installation must follow the manufacturer’s written instructions and be performed by a qualified applicator.
